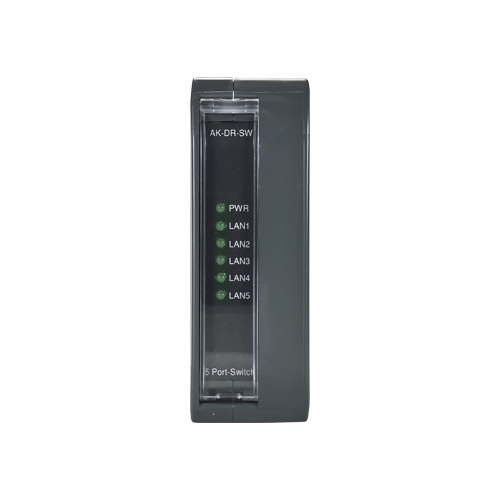

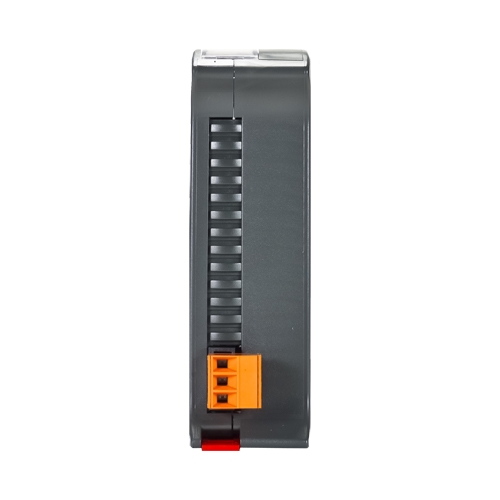

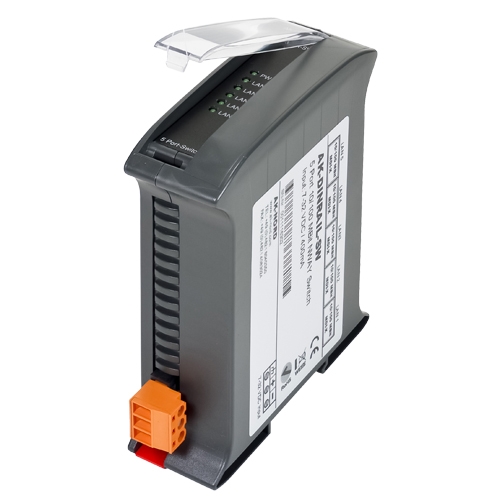

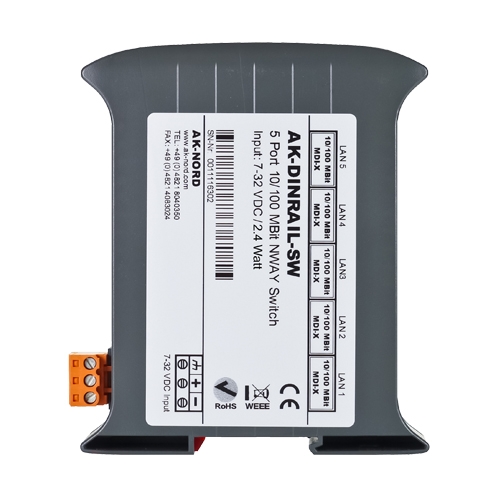

It is possible to directly network easily up to five network devices using the AK-DinRail-Switch. Five 10/100 ports provide for optimum band widths in the half-duplex or full-duplex mode. The automatic MDI/MDI-X cable recognition is supported on each port and the AK-DinRail-SW5 can be installed within seconds by its Plug&Play functionality. It can be plugged on each 35mm top hat / DIN rail EN 60715 (50022) and has a width of only 35mm.
Power supply
7-32 volts / 2,4 watt
Temperature range
-10°C to + 60°C
Dimensions:
35 x 120 mm(WxH)

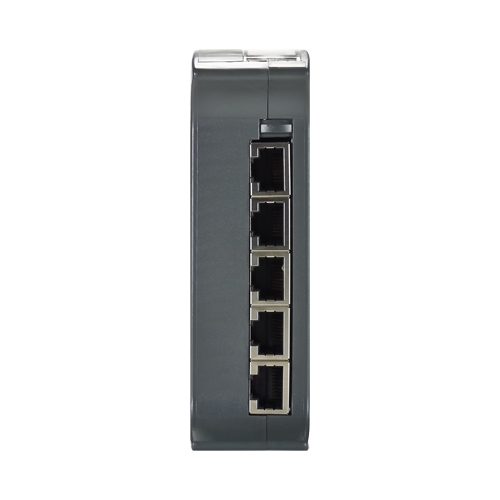

5 x Ethernet
10/100Mbit RJ45(M-DIX)
